PIXRAY

PIXRAY, (PIcturing X-RAYs on-line) is a new generation real-time filmless X-ray system for :

• radioscopy
• mammography
• casualty department
• plaster room
• hand surgery
• craniofacial surgery
• angiography
• radiography
• medical diagnosis
• interventional radiology.

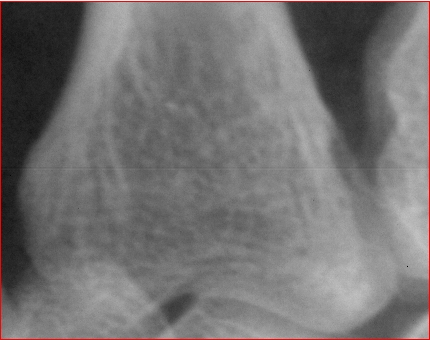

High resolution X-ray images (50 Ám pitch).


The flat panel X-ray detector can easily be integrated in standard X-ray radiography equipment for acquisition of real-time images with significant dose reduction (up to 100 times) in comparison with standard film techniques. PIXRAY is capable of producing up to 30 images/second. It uses a large area solid state pixel matrix based on an amorphous silicon sensor.


Electrodes introduction in the treatment of Parkinson disease.



The most important advantages of PIXRAY are :

• significant dose reduction, which diminishes the risk of radiation injury for the patient during lengthy or repeated diagnosis and interventional procedures

• wide dynamic range, for example, to follow-up fracture recovery under plaster.

The dynamic images are directly displayed on the PC monitor and archived in digital format using a very user-friendly image processing software, PIX-View. With the help of PIX-View, telemedicine is possible : the medical information can be transferred through the PACS or Internet networks.

Characteristics

Energy band : 20keV - 400 keV
Acquisition rate : up to 30 images per second
Active surface : 12 cm x 12 cm, 20cm x 20cm and now 41cm x 41cm
Pixel size : from 400 µm x 400 µm down to 50 µm x 50 µm
ADC resolution : 16 bits (65536 grey levels)

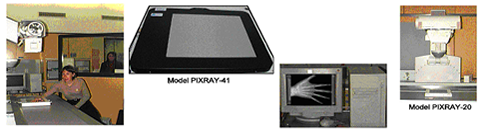

Various models of PIXRAY



 CLICK HERE TO SEE PIXRAY SHORT BROCHURE

 CLICK HERE TO SEE PIXRAY FULL BROCHURE

CLICK HERE TO SEE PIXRAY BROCHURE FOR NEUROSURGERY INTERVENTIONS
